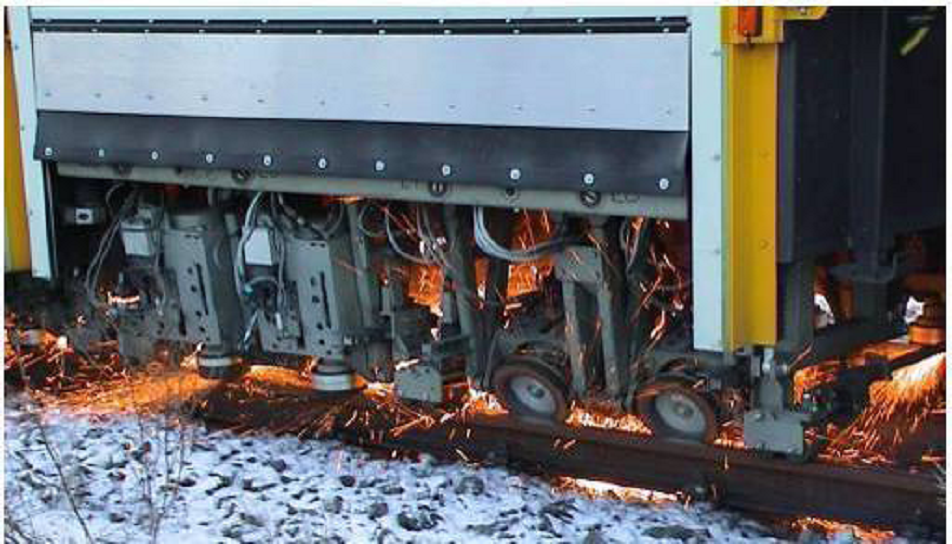

L&S Rail Grinder
The rail grinder RGM 2-16 is a rail-borne machine which is consisted of two wagons and has 16 grinding spindles with independant angular adjustment. Each of the spindles is driven by a 11 to 23 kW frequency-controlled electrical motor. The computer monitored grinding process is controlled with touch pad by the operator inside of the cabin.
The rail grinder is equipped with an online-measuring system. The digital measuring data for transverse and longitudinal profile are automatically and continuously collected, evaluated and saved.
The rail grinder RGM 2-16 can be used for removing of rolling skin, the elimination of rail corrugations (grooves) and short waves on the rail head as well as for the reprofiling of the rail head. The grinder is efficient for working in the open and closed scopes of long rail sections for winning the transverse and longitudinal target profile as well as for machining of turnouts.
