GRP1000 VMS Track Geometry Measurement System(High Efficiency)

Based on the GRP1000, the profiler and the total station satellite trolley are added to the system, it’s called GRP1000 VMS. With the dynamic tracing mode of total station, and combined with the absolute constraint of control points, the rapid measurement of the outer and inner geometry of the track can be realized, with the efficiency up to 1.2km/h, which is suitable for the tamping of ballast track, and the settlement observation of slab track.



Characteristics:

l  High efficiency

The measurement can be continuously with the efficiency 2km/h if 2 TPS were equipped;

l  Data richness

Full Chinese interface and report, powerful graphics, output different kind of data formats according to customers' needs, including track smoothness evaluation table, track deviation report, tamping machine operation data, etc;

l  Professional software

Reserving track vertical correction value, minimal/maximum track vertical correction value, minimal/maximum track horizontal correction value, can be set in the software. And if the correction value is too big, it can be optimized in the software;

l  Interface with tamping machine

Data output from the software can be input into tamping machine (with the WinALC system, DCZ-32, DC-32II, DC-32,DCL-32, DCL-48, DWL-48 ) directly, so automatic tamping can be realized;

l  High precision tamping

Data acquisition with big frequency, and data interval output can be defined by users, e.g you can define the interval length from 5m to 3m, even 0.65m, so it can help the tamping work much more accurate.



Application range:

l  Cooperation with tamping machine for ballast track

l  Fast speed settlement observation for slab track


TGS FX Hand-pushed Trolley

Battery

Stationing

Photoelectric counter measurement method

Trolley and TPS

BRT,LT16-6,Li,16.8V,6.5Ah

Accuracy of Stationing

<0.2%

Working Time

24h (with  2 batteries)

Resolution of

Stationing

5mm

PC

CF-19  Li Battery 10.65V 5.4Ah

Gauge Types(mm)

1000,1067,1435,1520/24,1600,1668/76

Battery  Working

time

9h (with  2 batteries)

Measurement Range

-25mm/+65mm tangent displacement sensor

Working Conditions

Gauge Measurement

Accuracy

±0.3mm(indication

error)

Temperature

-20℃~+50℃

Super Elevation

High precision tilt

sensor

Humidity

90%,no condensation

Measurement Range

±10°(±225mm for 1435mm standard gauge)

Measurement Efficiency

Accuracy

±0.3mm(indication error for 1435mm standard gauge)

Measurement

Mode

Static or dynamic

Profiler 110 FX

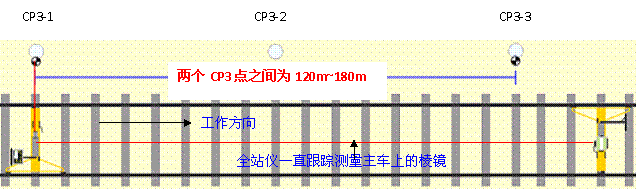

Distance of Each

Setup

120m~180m

Measurement range

0.3m-30m

Efficiency

1.2km/h(with   1 TPS)

1.0km/h(with   2 TPS)

Accuracy

±2mm

Interface with Tamping Machine

TPS

LEICA TPS 1200/TS15/TS16/TS30/TS50

Type of Tamping

Machine

DC32/DCL32/DWL-48 ETC. with WinALC

system

Weight of the System

29.8kg

Measurement Accuracy

Measurement   Mode

Static or dynamic

Overall  Accuracy

3mm(outer geometry)
